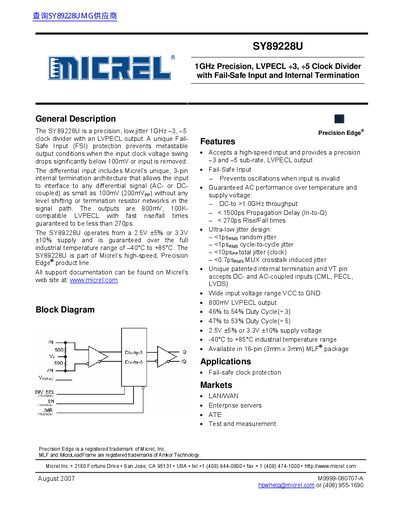

The SY89228U is a precision, low jitter 1GHz ÷3, ÷5 clock divider with an LVPECL output. A unique Fail-Safe Input (FSI) protection prevents metastable output conditions when the input clock voltage swing drops significantly below 100mV or input is removed. The differential input includes Micrel’s unique, 3-pin internal termination architecture that allows the input to interface to any differential signal (AC- or DC- coupled) as small as 100mV (200mVPP) without any level shifting or termination resistor networks in the signal path. The outputs are 800mV, 100K- compatible LVPECL with fast rise/fall times guaranteed to be less than 270ps. The SY89228U operates from a 2.5V ±5% or 3.3V ±10% supply and is guaranteed over the full industrial temperature range of –40°C to +85°C. The SY89228U is part of Micrel’s high-speed, Precision Edge® product line. All support documentation can be found on Micrel’s web site at: www.micrel.com.
The SY89228U is a precision 1 GHz clock divider that provides +3 and +5 LVPECL outputs. It features a unique Fail‑Safe Input that protects against metastable output conditions when the input clock voltage drops below 100 mV. The device operates from a 2.5 V +5% or 3.3 V +10% supply and is rated for industrial temperature ranges.
Key features include ultra‑low jitter (<1 ps rms), fast rise/fall times (<270 ps), wide input voltage range (down to 100 mV), and selectable divide‑by‑3 or divide‑by‑5 operation via the DIV_SEL pin. The datasheet provides detailed pin descriptions, absolute maximum ratings, and application circuits for PECL output termination.
