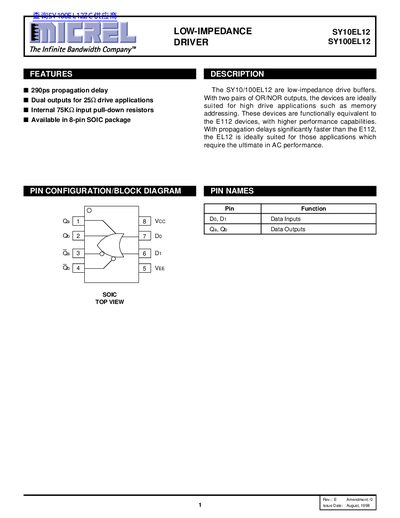

The SY10/100EL12 are low-impedance drive buffers. With two pairs of OR/NOR outputs, the devices are ideally suited for high drive applications such as memory addressing. These devices are functionally equivalent to the E112 devices, with higher performance capabilities. With propagation delays significantly faster than the E112, the EL12 is ideally suited for those applications which require the ultimate in AC performance.
The SY10EL12 and SY100EL12 are low‑impedance drive buffers with dual OR/NOR outputs, suitable for high‑drive applications such as memory addressing. They offer a fast propagation delay of 290 ps and internal 75 kΩ pull‑down resistors, and are available in an 8‑pin SOIC package.
The document lists detailed DC and AC electrical characteristics, including typical power‑supply current of 14 mA, typical supply voltage of –4.75 V, and output rise/fall times around 350 ps. Ordering codes for commercial Z8‑1 packages are also provided.
| Propagation delay | 290 ps |
|---|---|
| Input pull‑down resistor | 75 kΩ |
| Power‑supply current (typical) | 14 mA |
| Power‑supply voltage (typical) | –4.75 V |
The SY10EL12 driver has a typical propagation delay of 290 ps.
The ordering code for the SY10EL12 in a Z8‑1 package is SY10EL12ZC.
Each input includes an internal 75 kΩ pull‑down resistor.
