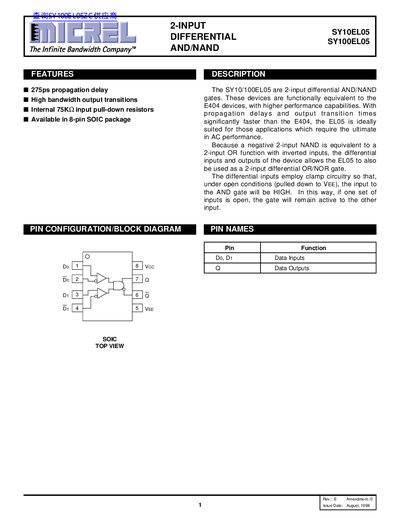

SY10/100EL05 are 2-input differential AND/NAND gates. These devices are functionally equivalent to the E404 devices, with higher performance capabilities. With propagation delays and output transition times significantly faster than the E404, the EL05 is ideally suited for those applications which require the ultimate in AC performance. Because a negative 2-input NAND is equivalent to a 2-input OR function with inverted inputs, the differential inputs and outputs of the device allows the EL05 to also be used as a 2-input differential OR/NOR gate. The differential inputs employ clamp circuitry so that, under open conditions (pulled down to VEE), the input to the AND gate will be HIGH. In this way, if one set of inputs is open, the gate will remain active to the other input.
The SY10EL05 and SY100EL05 devices are 2‑input differential AND/NAND gates that can also function as differential OR/NOR gates thanks to their input structure. They feature a 275 ps propagation delay and high‑bandwidth output transitions, making them suitable for high‑speed AC applications.
The datasheet provides pin configuration, DC and AC electrical characteristics, mechanical dimensions, and ordering codes. Typical specifications include a propagation delay of 260 ps, output rise/fall times of 225 ps, supply current of 18 mA, and operation in an 8‑pin SOIC package.
| Input HIGH current | 150 µA |
|---|---|
| Package | 8‑pin SOIC |
Both devices are supplied in an 8‑pin SOIC package.
The SY10EL05 can be ordered as SY10EL05ZC or SY10EL05ZCTR, both in the Z8‑1 commercial package.
