PHE426 is a single metallized film pulse capacitor from EPCOS, polypropylene dielectric, with a rated voltage of 100 to 1000 VDC, a rated capacitance of 63 to 250 nF, a rated loss of 0.001 to 0.0033 ohms, and a rated frequency of 1 kHz to 100 kHz. The working temperature is –55 to +105 °C.
The PHE426 series are single‑metallized film pulse capacitors with a polypropylene dielectric, designed for pulse operation in SMPS, TV, monitor, electrical ballast and other high‑frequency applications that require stable performance. The capacitors feature radial leads, vacuum‑evaporated aluminium electrodes and are encapsulated in a self‑extinguishing material meeting UL 94V‑0.

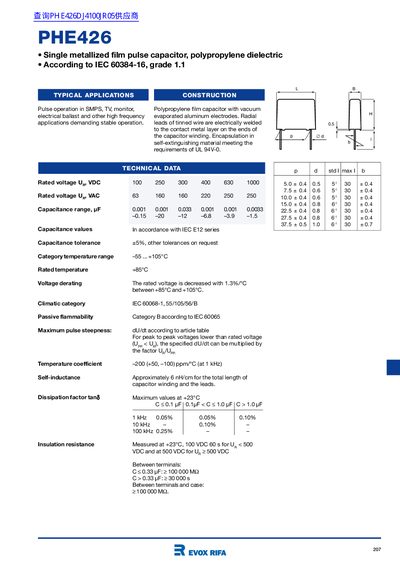

Technical data include rated voltages up to 1000 VDC/250 VAC, a wide capacitance range, low dissipation factor, high insulation resistance and defined temperature coefficients. Detailed article tables list dimensions, lead spacing, and packaging options for various voltage and capacitance values.
| Rated voltage | up to 1000 VDC/250 VAC |
|---|---|
| Capacitance range | pF (varies by part number) |
| Temperature coefficient | -200 (+50, -100) ppm/°C at 1 kHz |
| Self‑inductance | ≈6 nH/cm of winding length |
| Dissipation factor (tanδ) | 0.05 % at 1 kHz |
| Insulation resistance | ≥100 MΩ at 1 kHz |
| Climatic category | Category B according to IEC 60065 |
It is used for pulse operation in SMPS, TV, monitor, electrical ballast and other high‑frequency applications that demand stable operation.
The temperature coefficient is –200 ppm/°C with a tolerance of +50/–100 ppm/°C at 1 kHz.
The datasheet lists a maximum pulse steepness parameter in the technical data section, but the exact numeric value is not given in the excerpt.
