GL05-HT3 to GL24-HT3 are low capacitance ESD protection diodes for high-speed data interfaces. They provide transient protection according to IEC 61000-4-2 (ESD) and IEC 61000-4-5 (Lightning) standards. These diodes are suitable for high-speed data lines, cellular handsets, USB port protection, LAN equipment, and peripherals. They come in a small package and are lead (Pb)-free components. They comply with RoHS 2002/95/EC and WEEE 2002/96/EC standards.

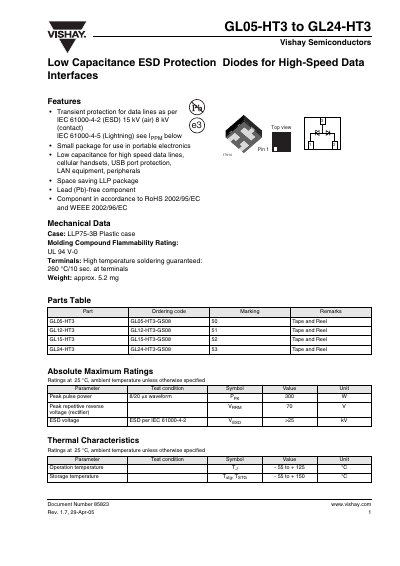

The handbook describes Vishay's GL05‑HT3 to GL24‑HT3 series of low‑capacitance ESD protection diodes designed for high‑speed data interfaces such as USB, LAN and cellular handsets. It lists key features including IEC‑61000‑4‑2 ESD protection, small LLP75‑3B plastic package, lead‑free and RoHS compliance.
Technical sections provide mechanical dimensions, part ordering codes, absolute maximum ratings, and detailed electrical characteristics such as peak pulse power, reverse voltage, ESD voltage, operating and storage temperature ranges, and capacitance values for each part number.
| Peak pulse power (8/20 µs) | 300 W |
|---|---|
| Peak repetitive reverse voltage (VRRM) | 70 V |
| ESD voltage rating | >25 kV (IEC 61000‑4‑2) |
| Operating temperature (TJ) | -55 °C to +125 °C |
| Storage temperature (TSTG) | -55 °C to +150 °C |
The diodes are rated for ESD voltages greater than 25 kV according to IEC 61000‑4‑2.
They operate from –55 °C up to +125 °C.
All parts use a small LLP75‑3B plastic case.
Yes, they are lead‑free and meet RoHS 2002/95/EC requirements.
