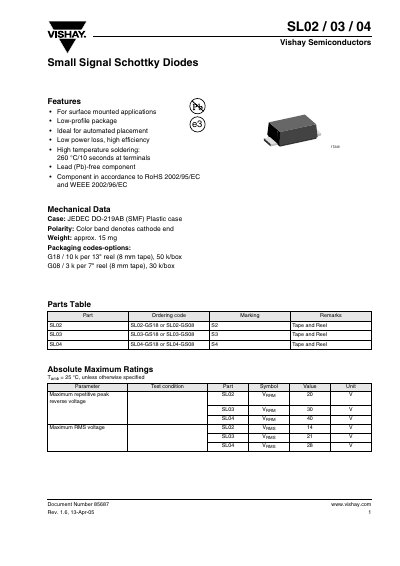

SL02 / 03 / 04 is a series of small signal Schottky diodes produced by Vishay Semiconductors, with low power loss, high efficiency, and high temperature soldering.
The document provides detailed specifications for the Vishay SL02, SL03, and SL04 small‑signal Schottky diodes, covering electrical, thermal, and mechanical data. It includes maximum voltage ratings, forward current capabilities, typical forward voltage, and packaging dimensions for surface‑mounted applications.
Additional sections address ordering information, environmental compliance (RoHS, ODS policy), and legal disclaimer statements. The data is intended for designers to evaluate the diodes for high‑efficiency, low‑loss circuits.
| Maximum repetitive peak reverse voltage (VRRM) | SL02: 20 V, SL03: 30 V, SL04: 40 V |
|---|---|
| Maximum RMS voltage (VRMS) | SL02: 14 V, SL03: 21 V, SL04: 28 V |
| Maximum DC blocking voltage (VDC) | SL02: 20 V, SL03: 30 V, SL04: 40 V |
| Maximum average forward current (IF(AV)) | 1.1 A |
| Typical instantaneous forward voltage (VF) | SL02: 0.385 V, SL03: 0.43 V, SL04: 0.51 V |
| Thermal resistance junction‑to‑ambient (RthJA) | 180 K/W |
| Maximum operating junction temperature (TJ) | 125 °C |
| Storage temperature range (TSTG) | -55 °C to 150 °C |
| Soldering temperature limit | 260 °C for 10 s at terminals |
A soldering temperature of 260 °C for 10 seconds at the terminals is recommended.
The diodes can be stored from –55 °C up to 150 °C.
Yes, the components are lead‑free and comply with RoHS 2002/95/EC and WEEE 2002/96/EC.
