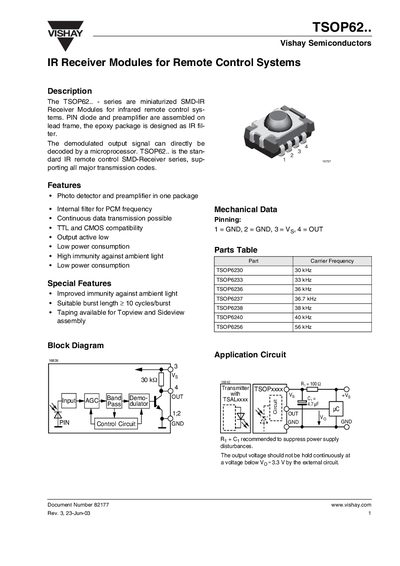

The TSOP62.. is a miniaturized SMD-IR Receiver Modules for infrared remote control systems, supporting all major transmission codes. It has photo detector and preamplifier in one package, internal filter for PCM frequency, continuous data transmission possible, TTL and CMOS compatibility, output active low, low power consumption and high immunity against ambient light.
The TSOP62.. series are miniaturized SMD IR receiver modules for remote‑control systems. Each device integrates a photodiode, preamplifier and an internal filter, delivering a low‑power, low‑noise output that can be decoded directly by a microprocessor. The series supports all major transmission codes and offers high immunity to ambient light.
The document lists absolute maximum ratings, electrical and optical characteristics, mechanical data, recommended soldering and cleaning procedures, as well as storage and ESD precautions. It also includes part numbers with carrier frequencies, pin assignments, and handling guidelines for reliable assembly and long‑term reliability.
| Supply Voltage (Pin 3 Vg) | -0.3 to 6.0 V |
|---|---|
| Supply Current (Pin 3 Ig) | 5 mA |
| Output Voltage (Pin 4 Vo) | -0.3 to 6.0 V |
| Output Current (Pin 4 Io) | 15 mA |
| Junction Temperature (Tj) | 100 °C |
| Operating Temperature Range | -25 to +85 °C |
| Storage Temperature Range | -40 to +100 °C |
| Power Consumption (at 85 °C) | 50 mW |
The recommended storage temperature is 10 °C to 30 °C with humidity below 60 % RH.
Up to 800 short bursts per second can be received continuously.
The maximum temperature during reflow soldering should be kept below 230 °C.
Pin 1 = GND, Pin 2 = GND, Pin 3 = Vg, Pin 4 = OUT.
