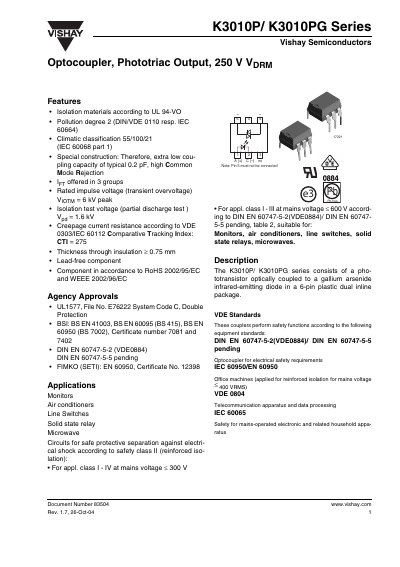

The K3010P/ K3010PG series is an optocoupler product with a phototriac output of 250 V VDRM. The product features isolation materials according to UL 94-VO, pollution degree 2, and a climatic classification of 55/100/21. Its special construction provides a low coupling capacity and high common mode rejection. Additionally, the product is compliant with RoHS standards and has high insulation strength and creepage current resistance.
The K3010P/K3010PG series are phototransistor optocouplers with a gallium‑arsenide infrared LED, packaged in a 6‑pin DIP. They provide a phototriac output with a rated off‑state voltage of 250 V and are intended for safety isolation in monitors, air conditioners, line switches, solid‑state relays and microwave circuits.
The document lists electrical characteristics, maximum safety ratings, typical performance curves, package dimensions and compliance with standards such as UL1577, BSI and DIN EN 60747‑5‑2. It also includes environmental policy information and legal disclaimer for end users.
| Off‑state voltage VDRM | 250 V |
|---|---|
| Forward current IF | 80 mA |
| Power dissipation Pdiss | 100 mW |
The off‑state voltage (VDRM) is rated at 250 V.
The device can withstand a transient voltage of 6 kV (VIOTM).
