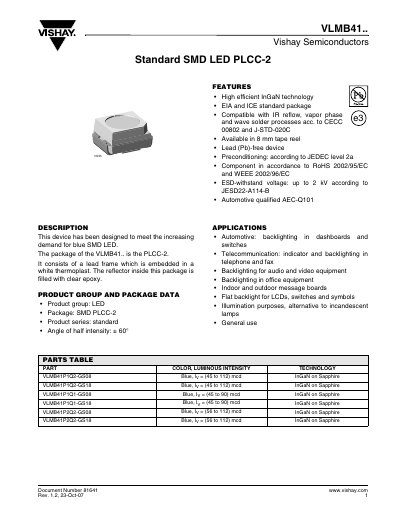

The VLMB41.. is a blue SMD LED product produced by VISHAY, which adopts InGaN technology and is equipped with PLCC-2 package. It has the characteristics of high efficiency and good compatibility.
The VLMB41 series is a high‑efficiency blue SMD LED built with InGaN technology in a PLCC‑2 package. It offers a luminous intensity of up to 112 mcd, a dominant wavelength around 462‑476 nm, and is automotive qualified (AEC‑Q101). The device is lead‑free, RoHS‑compliant and can withstand up to 2 kV ESD.
The LEDs are supplied on 8 mm tape reels, with detailed storage and handling guidelines to prevent moisture absorption. Recommended storage is 10 °C‑30 °C, and the parts are packaged with bar‑code labels for traceability. The document also includes environmental policy statements and legal disclaimer information.
| Forward voltage (typical) | 3.2‑4.2 V @ 20 mA |
|---|---|
| Dominant wavelength | 462‑476 nm @ 10 mA |
| Power dissipation | 84 mW |
| Storage temperature range | -40 °C to +100 °C |
| Operating temperature range | -40 °C to +100 °C |
| ESD withstand voltage | up to 2 kV |
| Lead‑free | Yes |
| Package | SMD PLCC‑2 |
The recommended storage temperature is 10 °C to 30 °C, while the allowable range is –40 °C to +100 °C.
Yes, the VLMB41 LEDs are specified as lead‑free devices.
The surge forward current is rated at 0.1 A for pulses up to 10 µs.
They are supplied in a PLCC‑2 SMD package on 8 mm tape reels, packed in anti‑humidity bags and sealed cardboard boxes.
