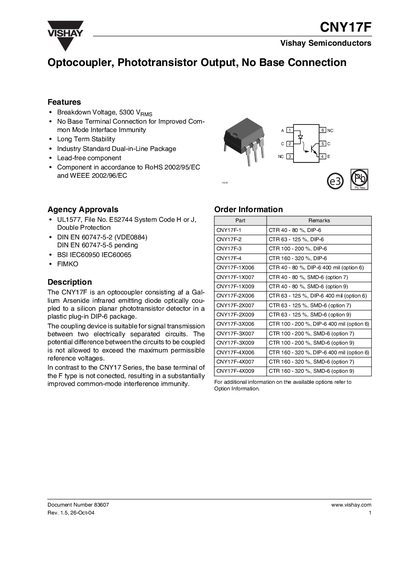

The CNY17F is an optocoupler from Vishay that has no base connection, high common mode interference immunity, and long term stability.
The CNY17F is a phototransistor‑output optocoupler with no base connection, offering improved common‑mode immunity and long‑term stability. It is supplied in a standard DIP‑6 package and complies with RoHS and WEEE directives.
The document lists absolute maximum ratings, detailed electrical characteristics (forward voltage, breakdown voltage, CTR ranges, power dissipation, isolation resistance), switching performance, and mechanical dimensions. Ordering codes for various CTR options and package styles are also included, along with regulatory and legal notices.
| Breakdown Voltage | 5300 V |
|---|---|
| Collector‑Emitter Breakdown Voltage | 70 V |
| Power Dissipation (input) | 100 mW |
| Power Dissipation (output) | 150 mW |
| Isolation Resistance | >10^11 Ω |
The maximum DC forward current is 60 mA, and the surge forward current is 25 A for less than 10 µs.
