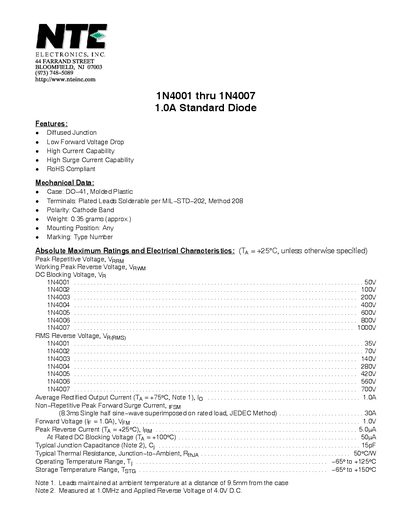

1N4001-1N4007 1.0A Standard Diode •Features: Diffused Junction • Low Forward Voltage Drop • High Current Capability • High Surge Current Capability • RoHS Compliant •Mechanical Data: Case: DO−41, Molded Plastic • Terminals: Plated Leads Solderable per MIL−STD−202, Method 208 • Polarity: Cathode Band • Weight: 0.35 grams (approx.) • Mounting Position: Any • Marking: Type Number
The NTE 1N4001 through 1N4007 series are 1 A standard rectifier diodes offered in a DO‑41 molded‑plastic case. The document lists their electrical characteristics, mechanical data, and performance curves for use in a wide range of electronic circuits.
Key features include a diffused junction, low forward voltage drop, high current and surge capability, and RoHS compliance. Detailed tables give peak repetitive reverse voltage, forward voltage at 1 A, surge current limits, junction capacitance, and thermal resistance, along with derating curves for temperature and forward current.
| Case | DO-41, Molded Plastic |
|---|---|
| RoHS Compliance | Yes |
Yes, the diodes are RoHS compliant.
