The NTE15042 is an integrated circuit developed to facilitate the Phase Lock Loop (PLL) digital tuning system interface for TV systems. It incorporates all the peripheral blocks into one chip, reducing the number of peripheral parts significantly.

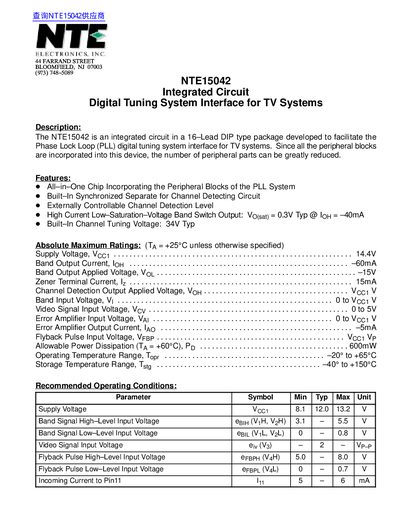

The NTE15042 is an integrated circuit in a 16‑lead DIP package designed to simplify the Phase‑Lock‑Loop (PLL) digital tuning system interface for television systems. All peripheral blocks of the PLL are incorporated, reducing the number of external components required.
Key features include an all‑in‑one chip architecture, built‑in synchronized channel‑detect circuit, externally controllable detection level, and high‑current low‑saturation voltage‑band switch output. The device operates from a supply voltage of about 12 V and supports temperature ranges from –20 °C to +65 °C.
| Supply Voltage (Vcc) | 8.1 V – 13.2 V (typical 12 V) |
|---|---|
| Error Amplifier Input Bias Current | 200 nA |
The device operates from about 8.1 V to 13.2 V, with a typical value of 12 V.
