The MLR series is a range of radial lead non-polarized polyester film (Mylar) capacitors dipped in a hard epoxy coating material to provide excellent protection against moisture. These devices are intended for general purpose DC applications.
The MLR series is a range of radial‑lead, non‑polarized Mylar (polyester) film capacitors with a hard epoxy coating for moisture protection. They are intended for general purpose DC applications.

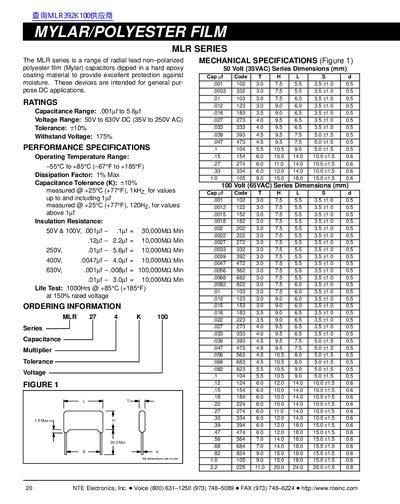

The document provides electrical ratings, performance specifications such as temperature range and dissipation factor, life‑test conditions, ordering information, and detailed mechanical dimensions for various voltage series.
| Voltage Range | 50 V to 630 V DC (35 V to 250 V AC) |
|---|---|
| Tolerance | +10 % |
| Withstand Voltage | 175 % |
| Operating Temperature Range | -55 °C to +85 °C |
| Dissipation Factor | 1 % Max |
The capacitance tolerance is +10 %.
They operate from –55 °C to +85 °C.
The maximum dissipation factor is 1 % Max.
