The TD series is a range of solid tantalum capacitors with a capacitance range of 0.1µf to 680µf, a rated voltage of 6.3V to 50V and an operating temperature range of -55°C to +85°C.

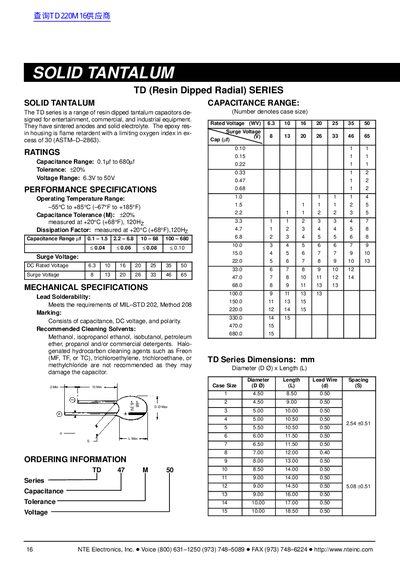

This document provides technical specifications for the NTE Electronics TD Series, a range of resin dipped tantalum capacitors designed for entertainment, commercial, and industrial equipment. The capacitors feature sintered anodes and solid electrolytes with flame retardent epoxy housings.
| Capacitance Range | 0.1µF to 680µF |
|---|---|
| Tolerance | +20% |
| Voltage Range | 6.3V to 50V |
| Operating Temperature Range | -67°F to +185°F |
| Capacitance Tolerance | +20% |
Recommended solvents include methanol, isopropanol, ethanol, isobutanol, petroleum ether, propanol, and commercial detergents.
Recommended cleaning solvents include methanol, isopropanol, ethanol, isobutanol, petroleum ether, propanol, and commercial detergents.
