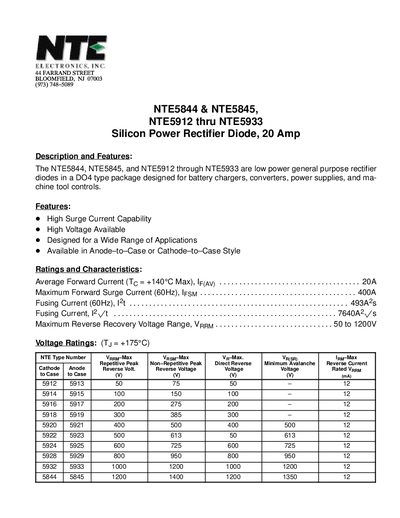

NTE5844, NTE5845, and NTE5912 through NTE5933 are low power general purpose rectifier diodes designed for battery chargers, converters, power supplies, and machine tool controls. Features include high surge current capability, high voltage availability, and suitability for a wide range of applications.
The NTE5844, NTE5845, and NTE5912 through NTE5933 are low‑power general‑purpose silicon power rectifier diodes packaged in DO‑4 style. They are intended for use in battery chargers, converters, power supplies, and machine‑tool controls.
Key specifications include a maximum average forward current of 20 A, peak surge currents up to 400 A, reverse voltage capability from 50 V to 1200 V, and thermal characteristics such as a 1.6 K/W internal thermal resistance and recommended mounting torque of 1.2‑1.5 N·m.
They are designed for battery chargers, converters, power supplies, and machine‑tool controls.
