The SOLID TANTALUM TD series is a range of resin dipped tantalum capacitors designed for entertainment, commercial, and industrial equipment. They have sintered anodes and solid electrolyte. The epoxy resin housing is flame retardant with a limiting oxygen index in excess of 30 (ASTM-D-2863).
The TD series is a range of resin dipped tantalum capacitors designed for entertainment, commercial, and industrial equipment. They feature sintered anodes and solid electrolyte with an epoxy resin housing that is flame retardant with a limiting oxygen index in excess of 30 (ASTM-D-2863).

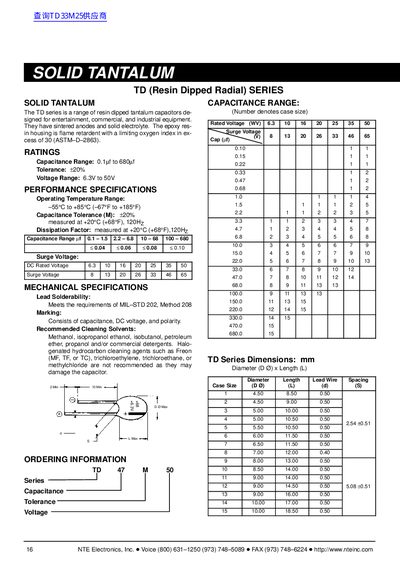

The document provides ratings including capacitance from 0.1µf to 680µf, voltage ranges from 6.3V to 50V, and performance specifications such as an operating temperature range of –55°C to +85 °C. It also lists mechanical specifications for lead solderability and cleaning solvents, along with ordering information and dimensions.
| Capacitance Range | 0.1µf to 680µf |
|---|---|
| Tolerance | ±20% |
| Voltage Range | 6.3V to 50V |
| Operating Temperature Range | –55°C to +85 °C |
| Limiting Oxygen Index | in excess of 30 (ASTM-D-2863) |
Recommended cleaning solvents include methanol, isopropanol ethanol, isobutanol, petroleum ether, propanol and/or commercial detergents.
Halogenated hydrocarbon cleaning agents such as Freon (MF, TF, or TC), trichloroethylene, trichloroethane, ormethylchloride are not recommended.
