NTE5408 3A Sensitive Gate SCR datasheet, includes NTE5408's absolute maximum ratings, forward voltage drop, reverse voltage drop, turn-off time, reverse recovery time, maximum turn-off current, maximum turn-off voltage, repetitive peak reverse voltage, repetitive peak off-state voltage and other parameters.

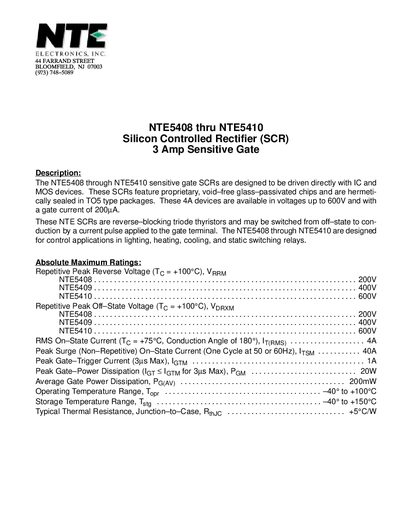

The NTE5408 through NTE5410 are sensitive‑gate silicon controlled rectifiers (SCRs) designed for direct drive from IC and MOS devices. They are hermetically sealed in TO‑5 packages and are intended for control applications such as lighting, heating, cooling, and static switching relays.
Key specifications include reverse‑blocking voltage ratings of 200 V, 400 V and 600 V for the three models, a continuous on‑state current of 4 A, peak gate‑trigger current of 1 A, and operation over a temperature range of –40 °C to +100 °C. Thermal resistance is typically 5 °C/W.
