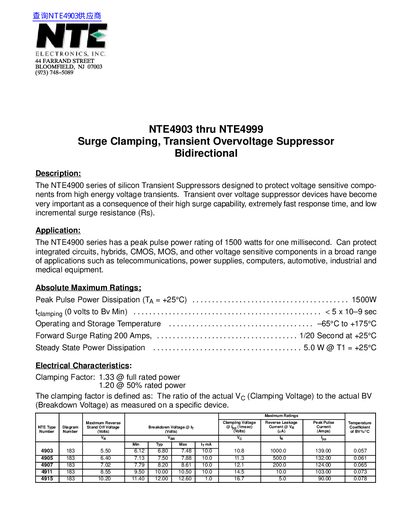

The NTE4900 series is a silicon transient suppressor designed to protect voltage sensitive components from high energy voltage transients. It has high surge capability, extremely fast response time, and low incremental surge resistance (Rs).
The document describes the NTE4900 series of silicon Transient Suppressors, designed to protect voltage sensitive components from high energy voltage transients. Key features include a peak pulse power rating of 1500 watts for one millisecond and applications in telecommunications, power supplies, computers, automotive, industrial, and medical equipment.
| Peak Pulse Power Dissipation (T A = +25°C) | 1500W |
|---|---|
| Operating and Storage Temperature | -65 °C to +175 °C |
| Forward Surge Rating | 200 Amps, 1/20 Second at +25 °C |
| Steady State Power Dissipation | 5.0 W @ T1 = +25°C |
| Clamping Factor (full rated power) | 1.33 |
The NTE4900 series has a peak pulse power rating of 1500 watts for one millisecond.
It protects integrated circuits, hybrids, CMOS, MOS, and other voltage sensitive components.
