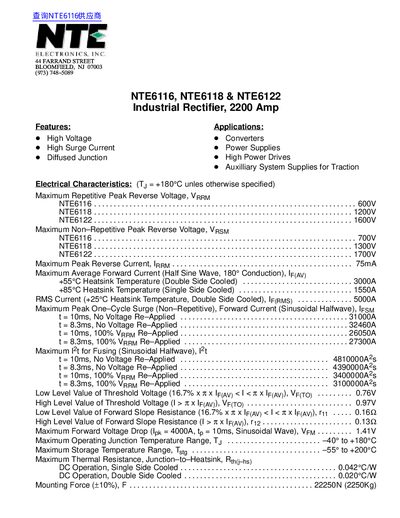

NTE6116, NTE6118 & NTE6122 Industrial Rectifier, 2200 Amp �Features: High Voltage � High Surge Current � Diffused Junction �Applications: Converters � Power Supplies � High Power Drives � Auxilliary System Supplies for Traction
The NTE NTE6116, NTE6118 and NTE6122 are high‑current industrial rectifiers designed for high‑voltage, high‑surge and high‑power applications such as converters, power supplies and traction systems. The manual outlines their key features, typical applications, and the electrical and thermal characteristics needed for proper installation and operation.
Key specifications include maximum repetitive and non‑repetitive reverse voltages, average forward current ratings for single‑ and double‑side cooled configurations, RMS current capability, surge current limits, and required mounting force. These data help users select appropriate cooling, wiring, and mechanical mounting to ensure reliable performance.
