NTE1072 is an integrated circuit used for FM-AM IF amplifier and AF amplifier. It features a supply voltage of 7.5V, circuit current of 20mA, and power dissipation of 300mW.

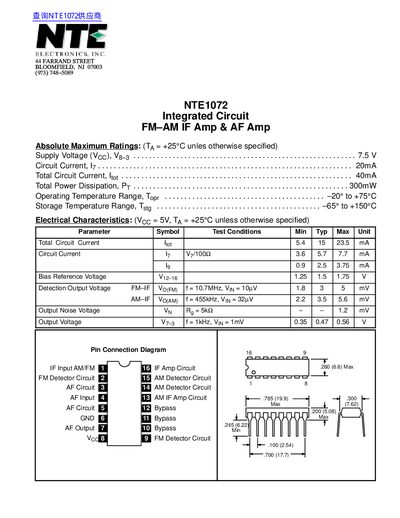

This document is a technical datasheet for the NTE Electronics NTE1072 Integrated Circuit. The device functions as an FM-AM Intermediate Frequency (IF) Amplifier and Audio Frequency (AF) Amplifier.
The datasheet provides absolute maximum ratings, such as a supply voltage limit of 7.5V and total power dissipation of 300mW. It also lists electrical characteristics including circuit current, bias reference voltage, detection output voltages for FM and AM signals, and output noise voltage under specific test conditions.
| Supply Voltage (Vcc) | 7.5V Max |
|---|---|
| Circuit Current | 20mA Max |
| Total Power Dissipation (PT) | 300mW |
| Bias Reference Voltage (V12-16) | 1.5V Typ |
| FM Detection Output Voltage | 3mV Typ |
| AM Detection Output Voltage | 35mV Typ |
| Output Noise Voltage (Rg = 5kΩ) | 1.2mV Typ |
