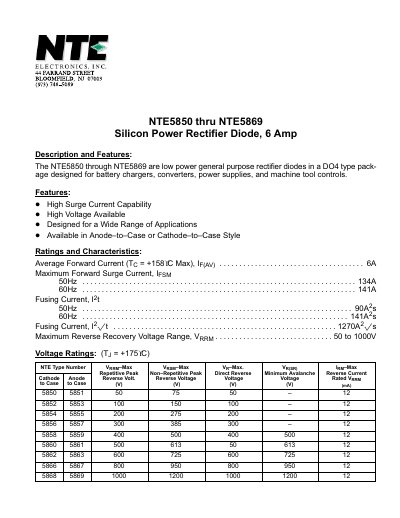

The NTE5850 through NTE5869 are low power general purpose rectifier diodes in a DO4 type package designed for battery chargers, converters, power supplies, and machine tool controls.
The NTE5850 through NTE5869 are low power general purpose rectifier diodes housed in a DO4 type package. They are designed for applications such as battery chargers, converters, power supplies, and machine tool controls. These devices feature high surge current capability and are available in both Anode-to-Case and Cathode-to-Case styles.
| Maximum Forward Surge Current (50Hz) | 134A |
|---|---|
| Maximum Operation Junction Temperature | +175°C |
| Package Type | DO4 |
They are designed for battery chargers, converters, power supplies, and machine tool controls.
The maximum reverse recovery voltage ranges from 50V to 1000V.
The mounting torque is between 1.2 and 1.5 in•lb (10.5 – 13.5 m•N).
