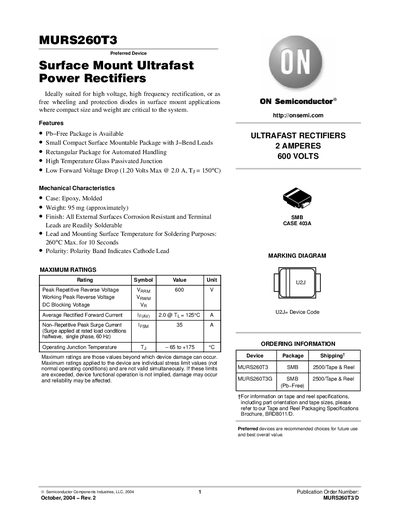

This document describes a surface mount ultrafast power rectifier ideally suited for high voltage, high frequency rectification, or as free wheeling and protection diodes in surface mount applications where compact size and weight are critical to the system.
The MURS260T3 is a surface‑mount ultrafast power rectifier designed for high‑voltage, high‑frequency applications where compact size and low forward voltage are critical. It features a Pb‑free, corrosion‑resistant package with a polarity band indicating the cathode lead.
Key specifications include a peak repetitive reverse voltage of 600 V, a low forward voltage drop of 1.20 V at 2 A (150 °C), a thermal resistance of 13 °C/W, and a maximum reverse recovery time of 75 ns. The device is supplied in an SMB (DO‑214AA) case with detailed dimensions for automated handling.
| Peak Repetitive Reverse Voltage | 600 V |
|---|---|
| Low Forward Voltage Drop (max @ 2 A, 150 °C) | 1.20 V |
| Maximum Instantaneous Forward Voltage (25 °C) | 1.45 V |
| Thermal Resistance, Junction‑to‑Lead | 13 °C/W |
| Average Rectified Forward Current | 2 A |
| Maximum Reverse Recovery Time | 75 ns |
| Package Type | SMB (DO‑214AA) case 403A |
| Case Length | 0.160 in (4.06 mm) |
The device can withstand a peak repetitive reverse voltage of 600 V.
The forward voltage drop is limited to 1.20 V max under those conditions.
The thermal resistance is 13 °C/W.
It is supplied in an SMB (DO‑214AA) case, part number 403A.
