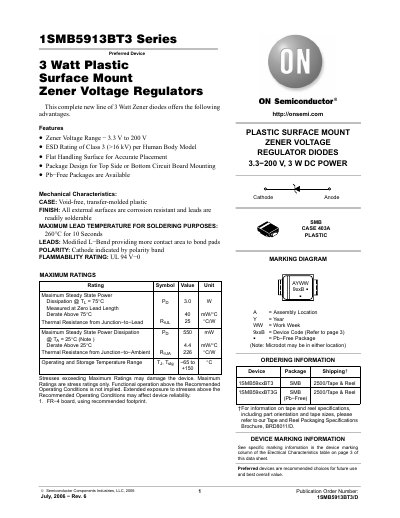

1SMB5913BT3 series 3 watt plastic surface mount Zener voltage regulators
The 1SMB5913BT3 series offers 3 W plastic surface‑mount Zener diodes with a voltage range of 3.3 V to 200 V, Class 3 (>16 kV) ESD protection, and a flat handling surface for accurate placement. Packages are void‑free, transfer‑molded plastic (CASE 403A) and are available in Pb‑free versions.
Electrical characteristics include maximum steady‑state power dissipation of 3 W at 75 °C, a maximum lead temperature of 260 °C for 10 s, and UL 94 V‑0 flammability rating. Detailed tables list Zener voltage, impedance, leakage current, and device markings for each part number, along with thermal resistance values and derating curves.
| Zener Voltage Range | 3.3 V to 200 V |
|---|---|
| ESD Rating | Class 3 (>16 kV) per Human Body Model |
| Maximum Lead Temperature for Soldering | 260 °C for 10 s |
| Flammability Rating | UL 94 V‑0 |
| Package Type | Plastic CASE 403A, void‑free, transfer‑molded |
The series covers Zener voltages from 3.3 V up to 200 V.
They have an ESD rating of Class 3, which is greater than 16 kV per the Human Body Model.
Leads may be exposed to 260 °C for up to 10 seconds during soldering.
