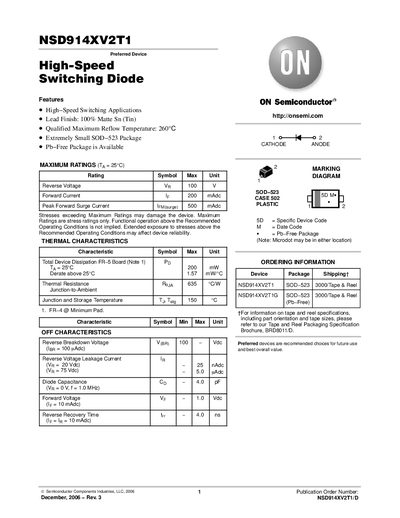

This document is about the NSD914XV2T1 high-speed switching diode. The diode features high-speed switching characteristics and is suitable for high-speed switching applications. It is available in an extremely small SOD-523 package and has a maximum rated reverse voltage of 100V and forward current of 200mA.
The NSD914XV2T1 is a high‑speed switching diode offered in an extremely small SOD‑523 package. It features a 100 V reverse voltage rating, 200 mA forward current rating, and a peak forward surge current of 500 mA. The device is supplied in a Pb‑free, matte Sn finish and is qualified for a maximum reflow temperature of 260 °C.
Thermal characteristics include a total device dissipation of 200 mW on FR‑4 board at 25 °C, with a junction‑to‑ambient thermal resistance of 635 °C/W. Detailed package dimensions, electrical ratings, and ordering information are provided for design and procurement purposes.
| Reverse Voltage (Vr) | 100 V |
|---|---|
| Forward Current (If) | 200 mA |
| Peak Forward Surge Current (IEM(surge)) | 500 mA |
| Reverse Recovery Time (trr) | 4.0 ns |
| Diode Capacitance (Cp) | 4.0 pF |
| Forward Voltage (Vf) | 1.0 V |
| Package Type | SOD‑523 |
The diode is rated for a maximum reverse voltage of 100 V.
It can carry a continuous forward current of 200 mA.
The device is supplied in an SOD‑523 surface‑mount package.
The typical reverse recovery time is 4.0 ns.
