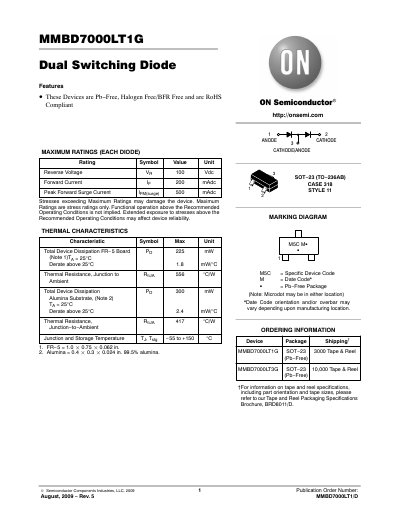

The document describes the features and characteristics of the MMBD7000LT1G dual switching diodes. These devices are lead-free, halogen-free, and free from brominated flame retardants, and are RoHS compliant. The maximum ratings include a reverse voltage of 100V, forward current of 200mA, and peak forward surge current of 500mA. The document also provides thermal characteristics and packaging information.
This document describes the MMBD7000LT1G dual switching diode, a Pb‑free, RoHS‑compliant component offered in a SOT‑23 (TO‑236) package. Key features include a 100 V reverse voltage rating, 200 mA forward current, and a 500 mA peak surge capability.
Electrical characteristics such as forward voltage, leakage current, and reverse recovery time are listed, along with thermal resistance values and detailed package dimensions. Ordering information and marking diagrams are also provided for easy part identification. This manual is written in Chinese.
| Reverse Voltage (VR) | 100 Vdc |
|---|---|
| Forward Current (IF) | 200 mAdc |
| Peak Forward Surge Current (IFM) | 500 mAdc |
| Junction‑to‑Ambient Thermal Resistance | 556 °C/W |
The diode is rated for a reverse voltage of 100 Vdc.
The maximum forward current is 200 mA dc.
It is supplied in a SOT‑23 (TO‑236) case 318 package.
