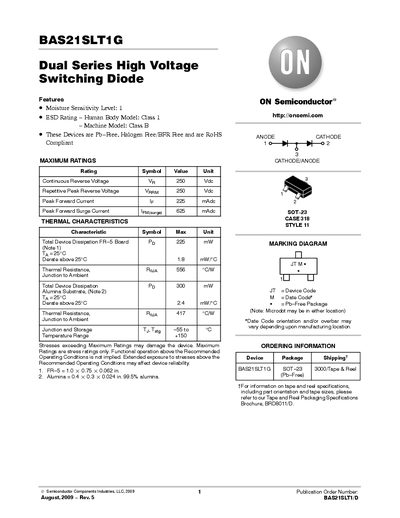

This document describes the features and characteristics of the BAS21SLT1G dual series high voltage switching diode, including moisture sensitivity level, ESD rating, lead-free, halogen-free/BFR free, and RoHS compliant.
The BAS21SLT1G is a dual‑series high‑voltage switching diode designed for fast recovery and low leakage. It is offered in a Pb‑free, RoHS‑compliant SOT‑23 (TO‑236) package and is suitable for applications requiring up to 250 V reverse voltage.
Key information includes maximum voltage and current ratings, thermal characteristics, electrical parameters such as forward voltage and diode capacitance, and detailed package dimensions. Ordering information and tape‑and‑reel specifications are also provided.
| Continuous Reverse Voltage | 250 Vdc |
|---|---|
| Reverse Leakage Current (200 Vdc) | 0.4 pA |
| Forward Voltage (100 mA) | 4.0 V |
| Diode Capacitance | 5.0 pF |
| Reverse Recovery Time | 50 ns |
| Package Type | SOT‑23 (TO‑236) case 318‑08 |
The diode is rated for a continuous reverse voltage of 250 Vdc.
It is supplied in a SOT‑23 (TO‑236) package, case 318‑08.
Refer to ON Semiconductor’s Tape and Reel Packaging Specifications brochure, BRD8011/D.
