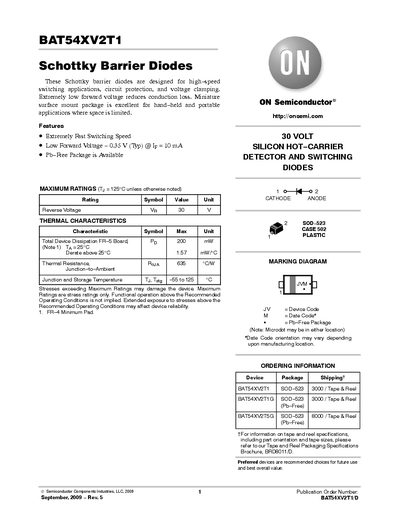

BAT54XV2T1 Schottky Barrier Diodes are designed for high−speed switching applications, circuit protection, and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount package is excellent for hand−held and portable applications where space is limited.
The BAT54XV2T1 is a Schottky barrier diode designed for high‑speed switching, circuit protection, and voltage clamping. It features an extremely low forward voltage (0.35 V typ at 10 mA) and a compact SOD‑523 surface‑mount package suitable for handheld and portable applications.
The document lists maximum ratings, thermal characteristics, electrical parameters, package dimensions, and ordering details. It also includes a marking diagram and references to ON Semiconductor’s soldering and mounting guidelines.
| Forward Current (DC) | 200 mA |
|---|---|
| Total Device Dissipation | 200 mW |
It is supplied in a SOD‑523 (case 502‑01) package.
The maximum device dissipation is 200 mW on an FR‑4 board.
