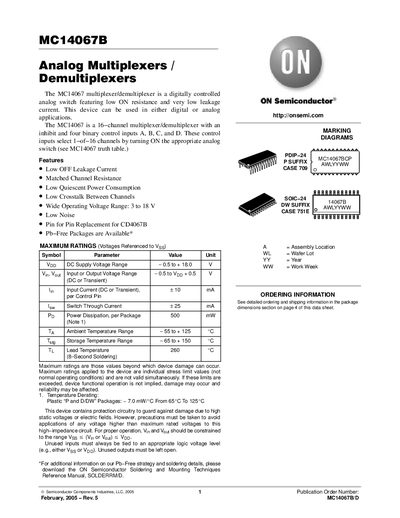

The MC14067B/D is a 16-channel multiplexer/demultiplexer manufactured by Semiconductor Components Industries, LLC. It features low ON resistance and very low leakage current, making it suitable for both digital and analog applications.
The MC14067B is a 16‑channel analog multiplexer/demultiplexer with an inhibit input and four binary control inputs (A, B, C, D). It offers low ON resistance, low OFF leakage, low crosstalk, and a wide operating voltage range of 3 V to 18 V, making it suitable for both digital and analog applications.
The data sheet provides detailed electrical characteristics, maximum ratings, package dimensions, ordering information, and example application circuits. It also includes typical performance graphs such as ON resistance versus input voltage and propagation delay times.
| Operating Voltage Range | 3 V to 18 V |
|---|---|
| Number of Channels | 16 |
| Typical ON‑Resistance (Vswitch) | ≈ 500 mV |
| Low OFF Leakage Current | Very low (specified as a feature) |
| Maximum Power Dissipation per Package | 500 mW |
The device operates from 3 V up to 18 V.
It provides 16 independent channels.
Typical ON resistance (voltage drop across the switch) is about 500 mV.
