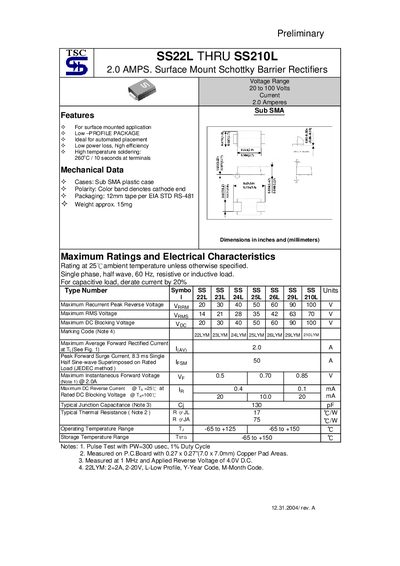

SS22L THRU SS210L 2.0 AMPS. Surface Mount Schottky Barrier Rectifiers, Voltage Range 20 to 100 Volts, Current 2.0 Amperes
This datasheet describes the SS22L‑SS210L series of surface‑mount Schottky barrier rectifiers designed for low‑profile, automated placement applications. Key features include low power loss, high efficiency, and the ability to withstand high‑temperature soldering (260 °C for 10 seconds at the terminals).\n\nThe document lists electrical characteristics such as voltage ranges, current ratings, and thermal performance, as well as mechanical dimensions, packaging details, and temperature limits. Graphs illustrate forward and reverse characteristics, and the rating tables cover maximum reverse voltage, RMS voltage, and surge current capabilities.
| Weight | ≈15 mg |
|---|---|
| Operating Temperature Range | -65 °C to +125 °C |
The device operates from –65 °C to +125 °C.
