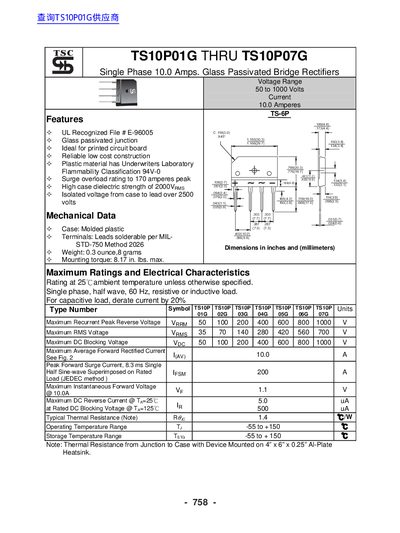

This document describes the features and characteristics of the TS10P series single-phase 10.0 amp glass passivated bridge rectifiers, including UL recognition, glass passivated junction, ideal for printed circuit board, reliable low-cost construction, plastic material with UL 94V-0 flammability classification, surge overload rating up to 170 amperes peak, high case dielectric strength of 2000VRMS, and isolated voltage from case to lead over 2500 volts.
This document provides technical specifications for the TSC TS10P01G through TS10P07G series of single phase glass passivated bridge rectifiers. These components are designed with a voltage range from 50 to 1000 volts and feature a maximum average forward rectified current of 10.0 amperes.
| Product Type | Single Phase Glass Passivated Bridge Rectifiers |
|---|---|
| Voltage Range | 50 to 1000 Volts |
| Maximum Average Forward Rectified Current | 10.0 A |
| Maximum Instantaneous Forward Voltage | 14 V @ 10.0A F |
| Operating Temperature Range | -55 to +150 C |
The device has a surge overload rating of 200 amperes peak.
Yes, the plastic material has Underwriters Laboratory Flammability Classification 94V-0.
