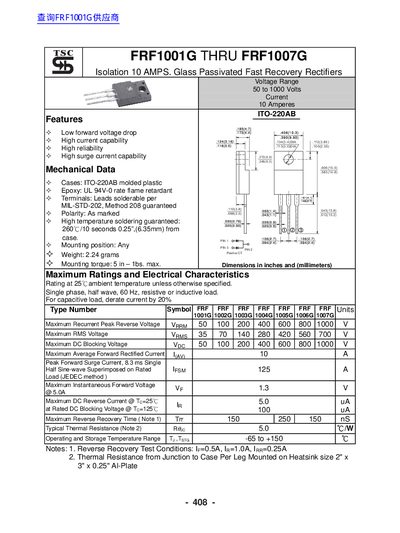

This document describes the features and characteristics of the FRF1001G to FRF1007G series glass passivated fast recovery rectifiers, including low forward voltage drop, high current capability, high reliability, and high surge current capability.
This datasheet details the electrical and mechanical specifications for TSC's FRF1001G to FRF1007G series of glass passivated fast recovery rectifiers. Each device is rated for 10 amperes average forward current and features a voltage range from 50 to 1000 volts. The rectifiers are housed in ITO-220AB molded plastic cases with solderable leads and are designed for high surge current capability and high reliability. They operate over a temperature range of -65°C to +150°C and are UL 94V-0 flame retardant.
| Maximum Recurrent Peak Reverse Voltage | 50 to 1000 Volts |
|---|---|
| Maximum Average Forward Rectified Current | 10 A |
| Peak Forward Surge Current | 125 A |
| Maximum Instantaneous Forward Voltage | 3 V @ 5.0A |
| Maximum DC Reverse Current @ 25°C | 5.0 uA |
| Maximum Reverse Recovery Time | 150 to 250 ns |
| Typical Thermal Resistance | 5.0 °C/W |
| Operating and Storage Temperature Range | -65 to +150°C |
The voltage range is 50 to 1000 volts.
The maximum average forward rectified current is 10 amperes.
The maximum reverse recovery time is 150 to 250 nanoseconds.
The operating and storage temperature range is -65 to +150°C.
