This document describes the features and characteristics of GBU601 to GBU607 single phase 6.0 ampere glass passivated bridge rectifiers, including voltage range, current, reliability, low cost construction, and high temperature soldering.

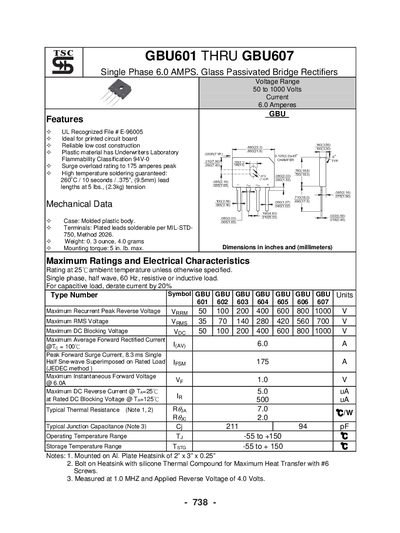

This document provides the specifications for the GBU601 through GBU607 series of single‑phase 6 A glass‑passivated bridge rectifiers. It lists voltage ranges, current ratings, mechanical dimensions, and thermal characteristics, along with UL recognition details.
The sheet includes maximum ratings such as peak forward surge current, reverse voltage limits, and typical performance curves. Mechanical data cover case material, weight, mounting torque, and recommended heat‑sink mounting procedures.
| Voltage Range | 50 V to 1000 V |
|---|---|
| Current Rating | 6.0 A |
| Peak Forward Surge Current | 175 A (8.3 ms) |
| Maximum Instantaneous Forward Voltage | 1.0 V @ 6.0 A |
| Operating Temperature Range | -55 °C to +150 °C |
| Typical Thermal Resistance | 7.0 °C/W |
| Typical Junction Capacitance | 94 pF |
| Weight | 0.3 oz (4.0 g) |
| Mounting Torque | 5 in·lb max. |
The bridge rectifiers can handle a peak forward surge current of 175 A for an 8.3 ms pulse.
They operate from –55 °C up to +150 °C.
Typical thermal resistance is 7.0 °C/W.
Each device weighs about 0.3 ounce (4.0 grams).
