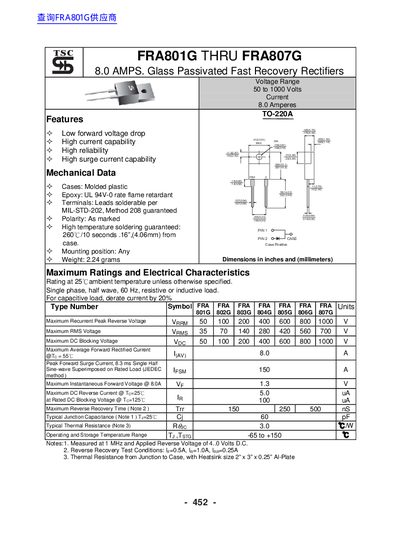

This document describes the features and characteristics of the FRA801G to FRA807G series glass passivated fast recovery rectifiers, including low forward voltage drop, high current capability, high reliability, and high surge current capability.
The document describes the FRA801G through FRA807G series of glass‑passivated fast recovery rectifiers. It lists mechanical data such as molded‑plastic cases, UL‑94V‑0 epoxy, solderable leads, and a weight of 2.24 g, and gives the voltage range of 50 V to 1000 V.
Electrical characteristics include maximum recurrent peak reverse voltage, RMS voltage, DC blocking voltage, average forward current of 8 A, peak surge current of 150 A (8.3 ms half‑sine), instantaneous forward voltage of 1.3 V at 8 A, reverse recovery times of 150‑500 ns, typical junction capacitance of 60 pF, thermal resistance of 3 °C/W, and an operating temperature range of –65 °C to +150 °C. Several characteristic curves illustrate performance limits.
| Voltage Range | 50 to 1000 V |
|---|---|
| Current | 8.0 A |
| Case Material | Molded plastic |
| Weight | 2.24 g |
| Maximum RMS Voltage (Vrms) | 35 V – 700 V |
| Maximum DC Blocking Voltage (Voc) | 50 V – 1000 V |
| Maximum Average Forward Rectified Current | 8.0 A |
The series is rated for a voltage range of 50 V to 1000 V.
The maximum average forward rectified current is 8.0 A.
