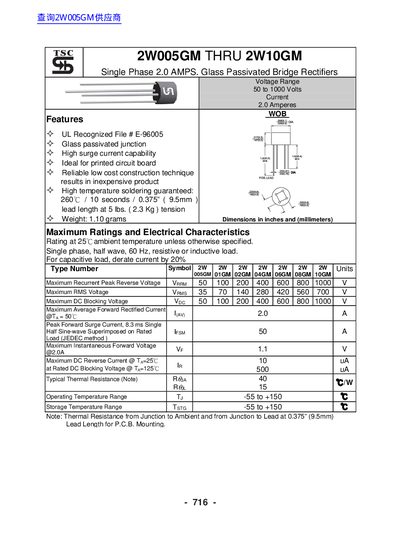

This document describes single-phase 2.0 amp glass passivated bridge rectifiers with voltage range of 50 to 1000 volts, featuring high surge current capability and reliable low cost construction technique. It is ideal for printed circuit board applications.
This document provides technical specifications for the TSC 2W005GM through 2W10GM series of single phase glass passivated bridge rectifiers. These components are designed with a reliable low-cost construction technique featuring high surge current capability and are ideal for printed circuit board mounting.
| Current Rating | 2.0 Amperes |
|---|---|
| Voltage Range | 50 to 1000 Volts |
| Maximum Recurrent Peak Reverse Voltage (2W005GM) | 50 V |
| Maximum RMS Voltage (2W10GM) | 700 V |
| Peak Forward Surge Current | 50 A |
| Maximum Instantaneous Forward Voltage | 1.1 V |
| Operating Temperature Range | -55 to +150 C |
The maximum average forward rectified current is 2.0 Amperes.
No, the document states that for capacitive load, the current must be derated by 20%.
The typical thermal resistance from junction to ambient and lead is 40 cw (C/W).
