The TS78L00 Series of positive voltage Regulators are inexpensive, easy-to-use devices suitable for a multitude of applications that require a regulated supply of up to 100mA. Like their higher power TS7800 and TS78M00 Series cousins, these regulators feature internal current limiting and thermal shutdown making them remarkably rugged. No external components are required with the TS78L00 devices in many applications. These devices offer a substantial performance advantage over the traditional zener diode-resistor combination, as output impedance and quiescent current are substantially reduced. This series is offered in 3-pin TO-92, SOT-89 and 8-pin SOP-8 package.
The TS78L00 series of positive voltage regulators are low‑current devices offering up to 100 mA output with internal current limiting and thermal shutdown. They are supplied in three package types and require no external components for many applications.

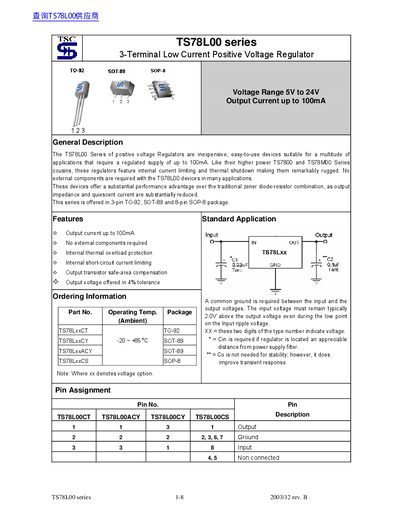

The document provides electrical characteristics such as voltage range, power dissipation, and temperature limits, as well as mechanical drawings for TO‑92, SOT‑89, and SOP‑8 packages.
| Voltage Range | 5 V to 24 V |
|---|---|
| Maximum Output Current | 100 mA |
| Power Dissipation (TO‑92) | 0.625 W |
| Operating Junction Temperature Range | 0 °C to +150 °C |
| Peak Output Current | 0.15 A |
The regulators can supply up to 100 mA of output current.
The series is offered in 3‑pin TO‑92, SOT‑89, and 8‑pin SOP‑8 packages.
The device operates with an input voltage from 5 V up to 24 V.
Yes, it features internal thermal overload protection.
