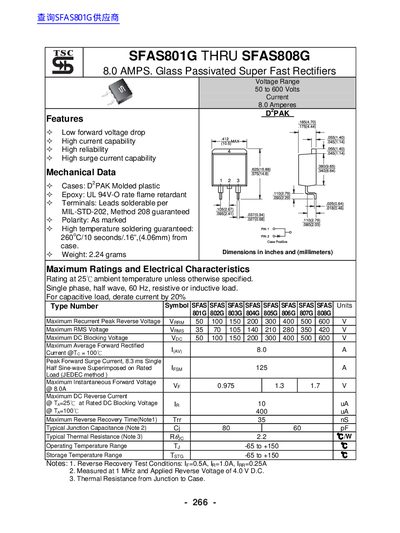

This document is about SFAS801G-808G 8.0 AMPS. Glass Passivated Super Fast Rectifiers. It includes the product features, parameters and appearance.
This document provides technical specifications for the ZS SFAS series of Glass Passivated Super Fast Rectifiers. The components are available in D'PAK packages with a maximum average forward rectified current of 8.0 Amperes and operate within an ambient temperature range of -65°C to +150°C.
The datasheet details electrical characteristics including voltage ratings from 50V to 600V, reverse recovery time, junction capacitance, and thermal resistance. It also includes graphical representations of typical forward and reverse characteristics, maximum current derating curves, and test circuit diagrams for performance verification.
| Package Type | D'PAK Molded plastic |
|---|---|
| Maximum Average Forward Rectified Current | 8.0 Amperes |
| Operating Temperature Range | -65 to +150 c |
| Maximum Recurrent Peak Reverse Voltage (SFAS808G) | 600 Vv |
| Maximum Reverse Recovery Time | 35 ns |
The maximum average forward rectified current is rated at 8.0 Amperes.
The components operate within a temperature range of -65 to +150 degrees Celsius.
The maximum reverse recovery time (Trr) is 35 nanoseconds.
