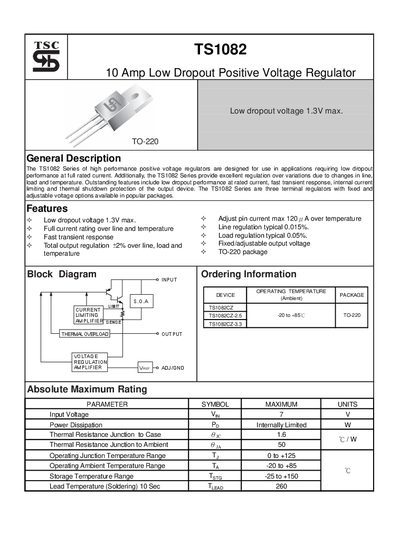

The TS1082 is a 10 Amp Low Dropout Positive Voltage Regulator, designed for use in applications requiring low dropout performance at full rated current. Additionally, the TS1082 series provides excellent regulation over variations due to changes in line, load and temperature. Outstanding features include low dropout performance at rated current, fast transient response, internal current limiting and thermal shutdown protection of the output device. The TS1082 series are three terminal regulators with fixed and adjustable voltage options available in popular packages.
The TS1082 series is a high‑performance, low‑dropout positive voltage regulator designed for applications that require stable output at full rated current. It is offered in a TO‑220 package with both fixed and adjustable output voltage options.
Key specifications include a maximum dropout voltage of 1.3 V, typical line regulation of 0.015 %, typical load regulation of 0.05 %, and a current limit of up to 10 A. The device operates over an ambient temperature range of –20 °C to +85 °C and features internal current limiting and thermal shutdown protection.
| Low dropout voltage | 1.3 V max |
|---|---|
| Input voltage range | 7 V |
| Fixed output voltage range | 4.75 V to 7 V |
| Adjustable output voltage range | 2.75 V to 7 V |
| Maximum output current | 10 A |
| Quiescent current | 12 mA to 14 mA |
| Line regulation (typical) | 0.015 % |
| Load regulation (typical) | 0.05 % |
| Operating ambient temperature range | -20 °C to +85 °C |
The TS1082 has a maximum dropout voltage of 1.3 V.
Typical line regulation is 0.015 % over line, load and temperature.
The device can limit current up to about 10 A.
