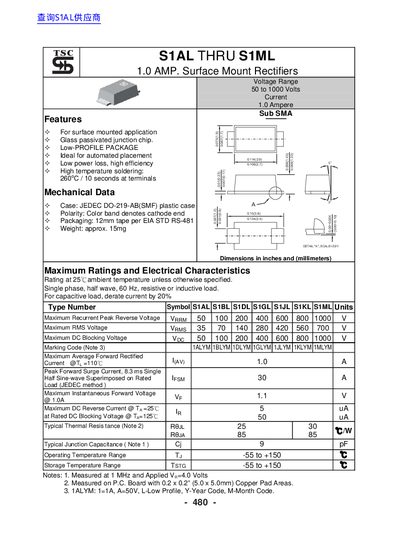

S1AL THRU S1ML 1.0 AMP. Surface Mount Rectifiers are glass passivated junction chips for surface mounted applications. It features low power loss and high efficiency, and is ideal for automated placement and high temperature soldering (260oC / 10 seconds).
The document provides specifications for the S1AL‑S1ML series of surface‑mount rectifiers. It lists features such as a low‑profile package, glass‑passivated junction chip, and suitability for automated placement and high‑temperature soldering.
Key electrical characteristics include voltage ranges from 50 V to 1000 V, a maximum average forward current of 1.0 A, and a peak forward surge current of 30 A (8.3 ms half‑sine). Mechanical data, packaging details, and typical performance curves are also included.
| Voltage Range | 50 to 1000 V |
|---|---|
| Maximum Recurrent Peak Reverse Voltage (V_RRM) | 50‑1000 V (model dependent) |
| Maximum AMS Voltage | 35‑700 V (model dependent) |
| Maximum DC Blocking Voltage | 50‑1000 V (model dependent) |
| Case | JEDEC DO-219-AB (SMF) plastic |
| Polarity marking | Color band denotes cathode end |
| Packaging | 12 mm tape per EIA STD RS‑481 |
| Weight | ≈15 mg |
| Typical Junction Capacitance | 9 pF |
| Operating Temperature Range | -55 °C to +150 °C |
| Storage Temperature Range | -55 °C to +150 °C |
They operate from –55 °C up to +150 °C.
They are supplied on 12 mm tape according to EIA STD RS‑481.
