This document provides detailed information on the specifications of the 38 series products, including connector designator, angle and profile, basic part number, length, cable entry, shell size, surface treatment, etc.

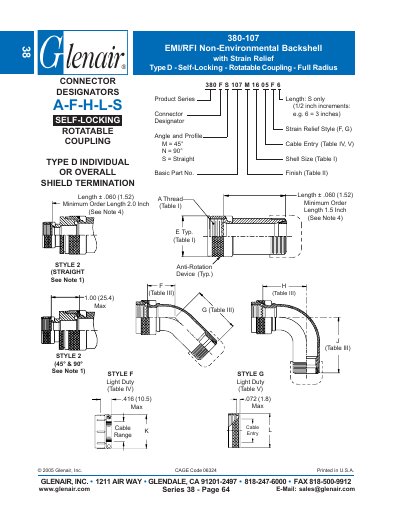

The 380-107 is a non‑environmental backshell designed for Series 38 connectors. It features EMI/RFI shielding, strain‑relief styles (F, G), a self‑locking rotatable coupling (Type D) and a full‑radius design.
Technical data include multiple shell sizes (F, G, H, J), standard finishes such as Cadmium Plate, Olive Drab and Electroless Nickel, and a cable entry range from 0.125 in (3.2 mm) to 1.250 in (31.8 mm). Detailed elbow dimensions and cable entry tables are provided for precise installation.
| Shell Size H Max | 1.281 in (32.5 mm) |
|---|---|
| Finish Options | Cadmium Plate, Olive Drab; Electroless Nickel |
| Strain Relief Styles | F, G |
Available finishes include Cadmium Plate, Olive Drab and Electroless Nickel.
Yes, it includes a self‑locking rotatable coupling (Type D).
H style elbows have a maximum dimension of 1.281 in (32.5 mm).
