This document introduces the composite connector backshell adapter for MIL-PRF-28876 fiber optic connectors from Glenair, Inc. It provides straight, 45-degree, and 90-degree options. The adapter is made of high-grade engineering thermoplastic, which ensures excellent corrosion resistance. The document also includes some application notes.

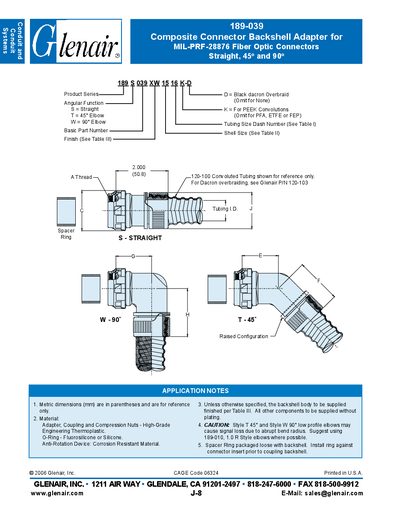

The Glenair 189-039 is a Composite Connector Backshell Adapter intended for use with MIL-PRF-28876 Fiber Optic Connectors. It provides straight, 45° elbow (Style T), and 90° elbow (Style W) configurations to accommodate various tubing sizes.
The adapter features a high-grade engineering thermoplastic body with options for dacron overbraid or PEEK/PFA/ETFE/FEP convolutions. Key components include an O-ring made of fluorosilicone or silicone, and an anti-rotation device made from corrosion-resistant material. The spacer ring is packaged loose to be installed against the connector insert prior to coupling.
| Compatible Standard | MIL-PRF-28876 Fiber Optic Connectors |
|---|---|
| Available Configurations | Straight, 45° Elbow, and 90° Elbow |
| O-Ring Material | Fluorosilicone or Silicone |
The adapter supports various tubing sizes ranging from Dash No. 06 to Dash No. 48, with specific inner diameter and outer diameter limits listed in Table I.
The available finishes include Composite Electroless Nickel (XM), Composite Cadmium O.D. Over Electroless Nickel (XW), and Composite No Plating—Base (XO).
The spacer ring should be installed against the connector insert prior to coupling the backshell.
