This is a specification sheet for the 360 series connector. It introduces the connector's type, angle, length, wiring method, wiring box size, surface treatment and other information.

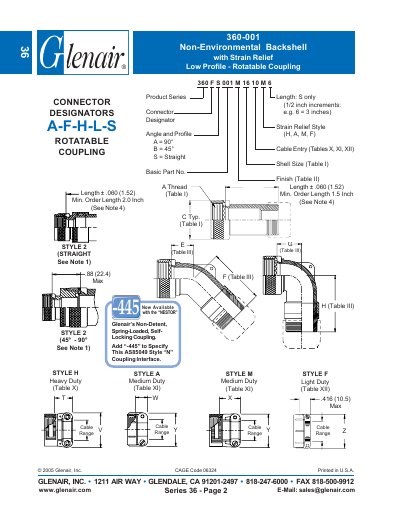

The document serves as a product data sheet for the Glenair Series 360-001 connector component. It details the specific model's configuration, including its designation as a non-environmental backshell with strain relief and a low-profile rotatable coupling interface.
Key specifications provided include various shell sizes (A through S), cable entry ranges for different styles (Heavy Duty H, Medium Duty A/M, Light Duty F), and standard finish options such as Cadmium Plate and Hard Coat Anodic. The text also references additional tables for unabridged dimensions and notes compatibility with the 'NESTOR' coupling interface.
| Product Series | Series 36 |
|---|---|
| Model Number | 360-001 |
| Coupling Type | Rotatable Coupling |
| Strain Relief Styles Available | H, A, M, F |
| Compatible Coupling Interface | NESTOR Glenair's Non-Detent, Spring-Loaded, Self-Locking Coupling |
The product is now available with the “NESTOR” Glenair's Non-Detent, Spring-Loaded, Self-Locking Coupling.
The minimum order length for straight backshells is 2.0 inches.
The available strain relief styles are H, A, M, and F.
