This document provides information about Glenair's Series 40 connectors, including different models and their features and characteristics.

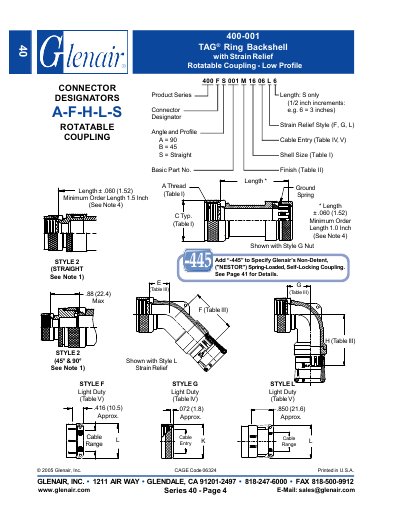

This document provides technical specifications for the Glenair Series 40 TAG Ring Backshell with Strain Relief Rotatable Coupling. It covers various connector designators (A-F-H-L-S) and profiles including straight, 45°, and 90° angles.
The datasheet details dimensional data for different shell sizes and cable entry options. It specifies the range of cables accommodated by each style and includes notes on minimum order lengths and factory consultation requirements for custom dimensions.
| Product Series | Series 40 |
|---|---|
| Connector Designators | A-F-H-L-S |
| Available Angles | 90°, 45°, Straight |
| Minimum Order Length (Straight) | 1/2 inch increments |
| Minimum Order Length (45° & 90°) | 1.5 Inch |
| Cable Range Definition | Accommodations range for the wire bundle or cable |
It specifies Glenair's Non-Detent, Spring-Loaded, Self-Locking Coupling.
Style 2 will be supplied instead of the standard style.
Yes, metric dimensions are indicated in parentheses next to the imperial values.
