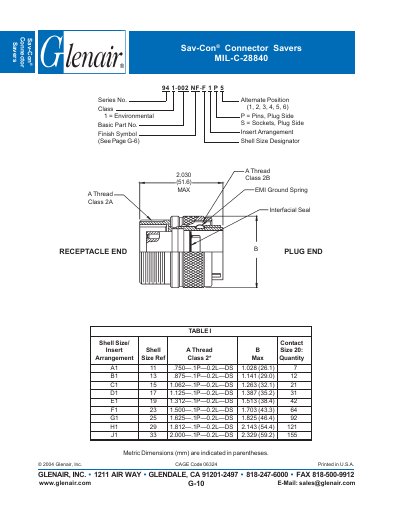

This document describes the features and characteristics of Sav-Con® Connector Savers, including MIL-C-28840 EMI Ground Spring Interfacial Seal and insert arrangement.
This document provides technical specifications for the Sav-Con® Connector Savers EMI Ground Spring Interfacial Seal. It covers metric and imperial dimensions, thread classes, shell sizes, contact quantities, and insert arrangements.
The datasheet includes detailed tables for alternate keyway positions (A through J) and specific dash numbers corresponding to various shell size designators.
| Product Type | EMI Ground Spring Interfacial Seal |
|---|---|
| Standard Compliance | MIL-C-28840 |
| Thread Class Receptacle End A | Class 2B |
| Thread Class Plug End B | Class 2A |
| Metric Dimensions Indicator | indicated in parentheses |
It serves as an EMI ground spring interfacial seal.
There are seven contacts for that configuration.
