Introducing the basic parameters of the 380 series products, including connector designators, angles and profiles, basic part numbers, lengths, strain relief styles, cable entries, shell sizes, surface finishes, etc.

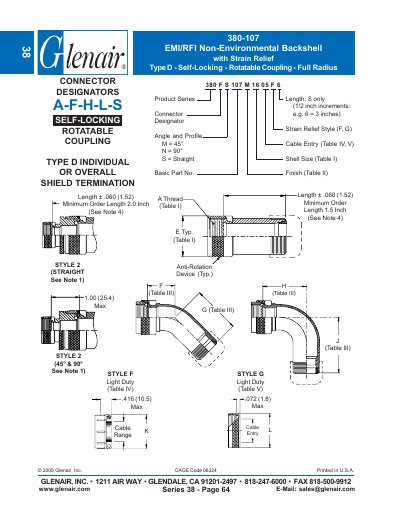

This document is a technical datasheet for the Glenair Series 38 connector family. It provides specific designator information for various backshell styles, including Self-Locking Rotatable Coupling Type D with EMI/RFI shielding.
The text details dimensional specifications for straight and angled (45° and 90°) configurations, listing maximum dimensions for shell sizes A through S. It also defines the acceptable cable range for different dash numbers and outlines standard finish options such as Cadmium Plate and Electroless Nickel.
The minimum order length for a straight backshell is 2.0 inches.
The minimum order length for 45° and 90° backshells is 1.5 inches.
