This document introduces Glenair's Series 38 connectors, including connector designators for different angles and profiles, features of direct coupling type F connectors, and different cable entry methods and shell sizes.

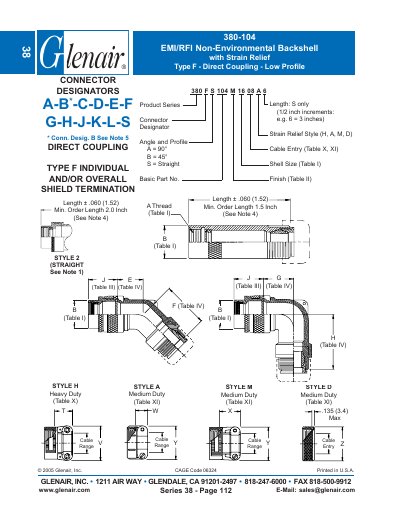

The 380-104 is a non‑environmental backshell designed for EMI/RFI protection. It features a direct‑coupling Type F interface and a low‑profile form factor, making it suitable for tight‑space applications.
The document lists connector designators, strain‑relief styles, shell sizes, finish options, and extensive cable‑entry dimensions. Tables provide metric and imperial measurements for various cable ranges and elbow dimensions, along with ordering information such as minimum length.
| Model | 380-104 |
|---|---|
| Coupling Type | Direct Coupling Type F |
| Strain Relief Styles | H, A, M, D |
| Shell Size Options | 08/09, 10/11, 12/13, 14/15, 16/17, 18/19, 20/21, 22/23, 24/25, 28/29, 32/33, 36/40 |
| Standard Finish Options | Cadmium Plate, Olive Drab; Electroless Nickel |
| Minimum Order Length | 2.0 Inch |
It uses a Direct Coupling Type F interface.
The backshell is offered with strain‑relief styles H, A, M, and D.
Standard finishes include Cadmium Plate in Olive Drab and Electroless Nickel.
The minimum order length is 2.0 inch.
