The 380-106 series is a self-locking rotary coupling connector with overall shielding and light-duty design with anti-rotation device.

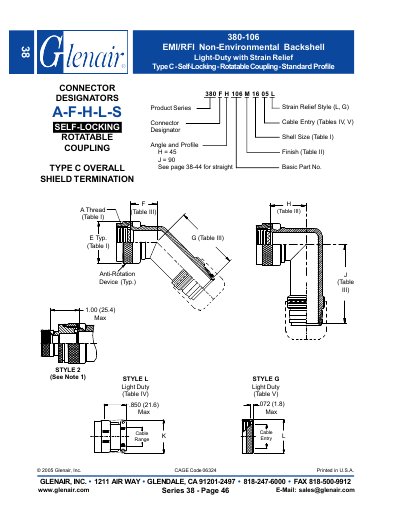

This document provides technical specifications and dimensional data for the Glenair Series 380-106 EMI/RFI Non-Environmental Backshell. It is a light-duty, self-locking rotatable coupling type C designed with standard profile dimensions and includes integrated strain relief.
The datasheet details various configuration options including cable range, cable entry sizes, shell sizes, and elbow angles (45° or 90°). It also lists available standard finishes such as Cadmium Plate and Electroless Nickel Cadmium Plate.
| Product Type | EMI/RFI Non-Environmental Backshell Light-Duty with Strain Relief Type C - Self-Locking - Rotatable Coupling - Standard Profile |
|---|---|
| Available Angles | 45° and 90° |
| Standard Finishes | Cadmium Plate, Olive Drab; Electroless Nickel Cadmium Plate, Olive Drab Over Electro less Nickel |
The document specifies H = 45° and J = 90° as the available profile angles.
Standard finishes include Cadmium Plate, Olive Drab and Electroless Nickel Cadmium Plate.
