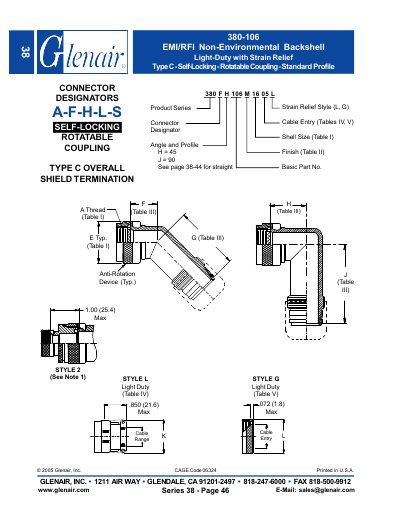

This document provides detailed information on 380-106 EMI/RFI Non-Environmental Backshell Light-Duty with Strain Relief Type C. It includes product model, features and characteristics.
The Glenair 380-106 is a light‑duty, non‑environmental backshell with EMI/RFI shielding, strain‑relief, and a self‑locking, rotatable coupling. It is offered in standard profile types (H, G, J) and supports a range of cable sizes and entry dimensions.
The document provides detailed tables for cable range, cable entry limits, shell sizes, connector designators, and available surface finishes. Metric dimensions are shown in parentheses alongside imperial values.
| Maximum Cable Range (Dash No. 01) | .5 93 in (15.1 cm) |
|---|---|
| Available Finish Options | Cadmium Plate – Olive Drab; Electroless Nickel Cadmium Plate – Olive Drab; Over Electroless Nickel |
| Shell Size for Designator H | 0.9 06 in (23.0 cm) |
Finishes include Cadmium Plate in Olive Drab, Electroless Nickel Cadmium Plate in Olive Drab, and Over Electroless Nickel.
The maximum cable range for dash number 01 is .5 93 in (15.1 cm).
