This document describes the design features and specifications of Glenair's Series 38 connectors. The connector design complies with the A-F-H-L-S rotatable coupling type and D individual or overall shield termination. Detailed information is provided on connector length, strain relief style, cable entry, shell size, and finish. The document also highlights the features and applications of different styles of connectors.

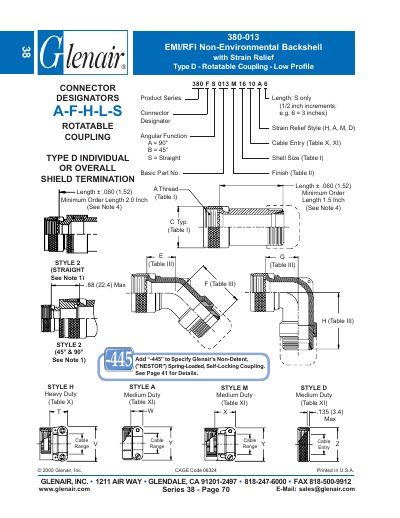

The 380-013 is a non‑environmental backshell from Glenair's Series 38 line. It features a rotatable coupling (type D) and medium‑duty strain‑relief style D, delivering EMI/RFI shielding while maintaining a low‑profile form factor.
Technical tables list connector designators, shell sizes, elbow dimensions, and cable‑entry ranges. Standard finishes include cadmium‑plate and electroless nickel, and the document provides metric conversions for all dimensions.
| Maximum Cable Entry (Dash No. 04) | 0.780 in (19.8 mm) |
|---|---|
| Strain Relief Style | Type D – Medium Duty |
| Coupling Type | Rotatable Coupling Type D |
It uses a rotatable coupling type D.
The backshell is equipped with strain‑relief style D, a medium‑duty style.
The maximum cable entry is 0.780 in (19.8 mm).
