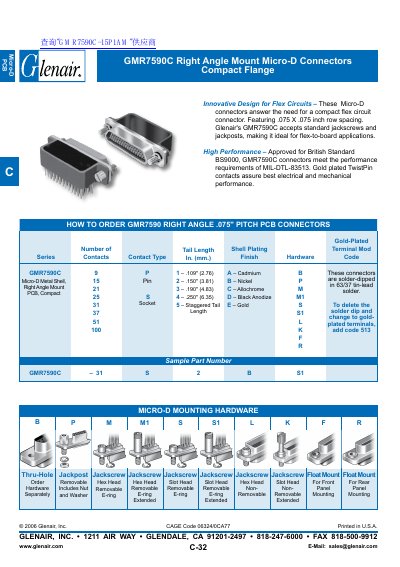

This PDF file is a product introduction manual for Glenair's GMR7590C Micro-D Connectors. This product is a right angle mount micro-D connector with a compact flange design. This product features a .075 X .075 inch row spacing and accepts standard jackscrews and jackposts, making it ideal for flex-to-board applications. This product meets the requirements of British Standard BS9000 and MIL-DTL-83513, and the gold plated TwistPin contacts ensure the best electrical and mechanical performance.
The Glenair GMR7590C is a right angle mount Micro-D connector designed specifically for flex-to-board applications. It features a compact flange and innovative design to accommodate flexible circuits, utilizing standard jackscrews and jackposts for mounting.
This datasheet provides detailed performance specifications, including current ratings of 3 AMP DWV at 600 VAC, operating temperatures from -55° C to +150° C, and mechanical dimensions. It also lists available configurations for various pin counts (9 through 100) with options for different tail lengths and plating finishes.
| Row Spacing | .075 X .075 inch |
|---|---|
| Standard | MIL-DTL-83513 |
| Current Rating | 3 AMP DWV 600 VAC Sea level |
| Insulation Resistance | 5000 Megohms Minimum |
| Contact Resistance | 8 Milliohms Maximum |
| Operating Temperature | -55° C. to +150° C. |
The connector features a .075 X .075 inch row spacing.
It uses gold plated TwistPin contacts to ensure best electrical and mechanical performance.
Yes, the connectors are approved for British Standard BS9000.
