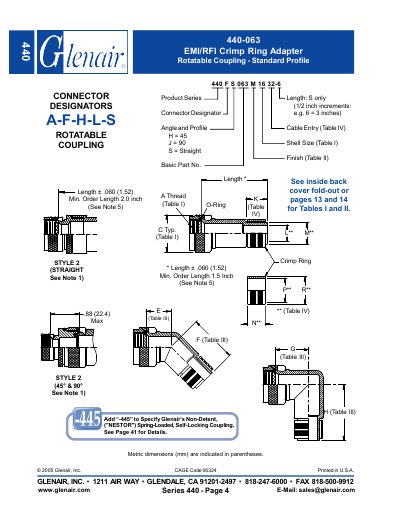

This document is the product manual of 440 series connectors, which introduces the connector's models, sizes, interfaces, etc.
This document serves as a technical guide for the Glenair Series 440 connector product line. It provides detailed information on various connector designators (A-F-H-L-S), including specific configurations such as the EMI/RFI Crimp Ring Adapter Rotatable Coupling.
The datasheet includes comprehensive dimensional data in both imperial and metric units, covering straight, angled (45° and 90°), and elbow styles. It also lists cable entry sizes, shell sizes, finishes, thread types, and corresponding installation tool die numbers required for proper crimp ring installation.
| Product Series | Series 440 |
|---|---|
| Document Copyright Year | 2005 |
| CAGE Code | 06324440 |
| Connector Designator Example | 440-063 EMI/RFI Crimp Ring Adapter Rotatable Coupling |
| Angle Options | H = 45° J = 90° S = Straight |
| Minimum Order Length (Style 2) | 2.0 inch |
The available angles are H = 45°, J = 90°, and S = Straight.
Style 2 will be supplied, and dimensions E, F, G, and H will not apply.
